Valve seats and valve guides are essential components of an internal combustion engine that contribute significantly to its efficiency, longevity, and performance. Understanding their function, materials, and maintenance can help in choosing the right components for optimal engine operation.

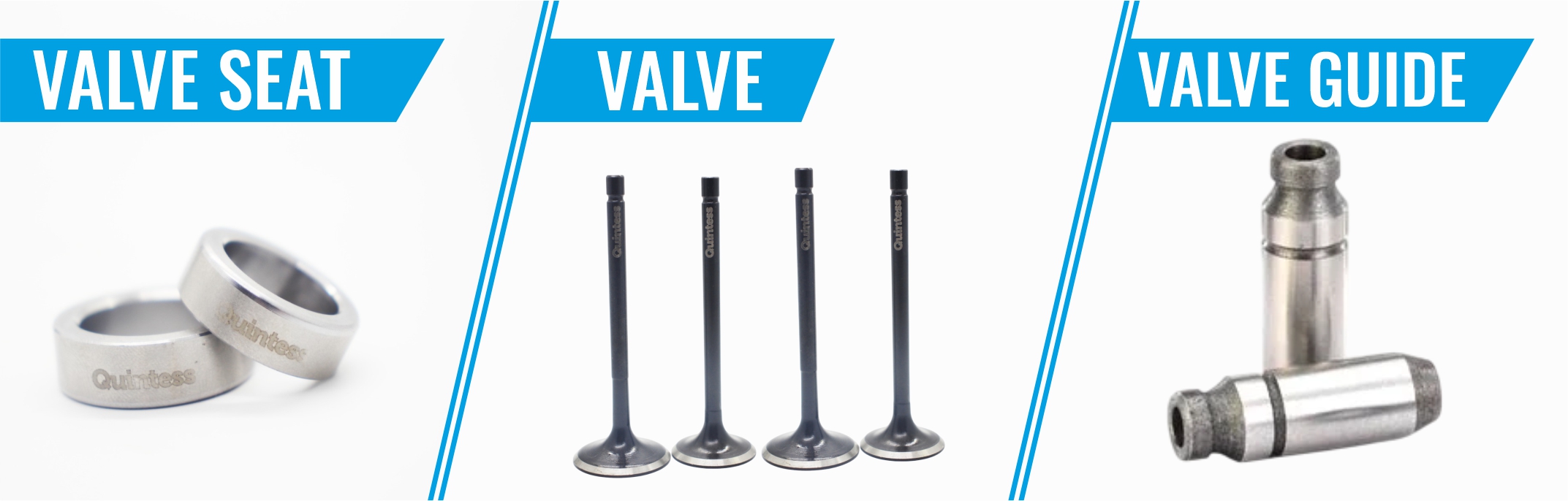

Understanding Valve Seats and Valve Guides
A valve seat is a crucial engine component that ensures proper sealing of the intake and exhaust valves. It prevents gas leakage and facilitates efficient combustion. There are different types of valve seats found in an engine valve seat setup, including exhaust valve seats and faucet valve seats for plumbing applications.
Key terms related to valve seating include:
- Valve seat diagram – A visual representation of valve seat placement.
- Valve guide – A component that ensures proper alignment of the valve stem.
- Engine valve guide – Helps maintain smooth movement of valves.
- Valve stem guide – Provides additional support to the valve stem for efficient operation.
Cylinder Liners and Their Importance
A cylinder liner, also known as a cylinder sleeve, is an integral part of the engine liner system. It acts as a replaceable surface for the piston and piston rings, reducing wear and extending engine life. Cylinder liners come in various materials, such as cast iron liners, and are widely used in automotive liner applications.
Common cylinder liner terms:
- Cylinder and cylinder liner – The relationship between the engine block and its liner.
- Piston and liner – The interaction between these components.
- Cyl liner – Abbreviation for cylinder liner.
- Liner piston – A term referring to the piston’s relation to the cylinder liner.
- Liner blocks – The part of the engine where cylinder liners are installed.
- Cylinder wall – The internal surface of the cylinder where the liner is fitted.
What are Valve Seats?
Valve seats are the surfaces against which the engine valves close, ensuring a proper seal in the combustion chamber. Their primary function is to facilitate efficient heat dissipation and maintain compression within the engine.
Types of Valve Seats
- Integral Valve Seats – These are machined directly into the cylinder head and are common in cast iron heads.
- Insert Valve Seats – Made of hardened alloys, these are pressed or shrunk into the cylinder head, often used in aluminum engines for better durability.
Materials Used
- Cast Iron – Traditional material used for its durability and machinability.
- Alloy Steels – Offer superior heat resistance and strength.
- Copper-Beryllium Alloys – High thermal conductivity ensures better heat dissipation.
- Powdered Metal Inserts – Used for extreme operating conditions.
What are Valve Guides?
Valve guides are cylindrical components that house the valve stem, ensuring smooth and precise movement. They play a crucial role in maintaining proper valve alignment and heat dissipation.
Functions of Valve Guides
- Maintain the correct alignment of the valve.
- Assist in heat transfer from the valve to the cylinder head.
- Reduce wear and friction on the valve stem.
Materials Used
- Cast Iron – Offers durability and ease of machining.
- Bronze Alloys – Provide excellent heat resistance and reduced friction.
- Steel Alloys – Used in high-performance and heavy-duty applications.
Importance of Proper Maintenance
Regular inspection and replacement of valve seats and guides are crucial for preventing engine inefficiencies such as power loss, poor fuel economy, and excessive emissions. Symptoms of worn-out valve components include:
- Loss of compression
- Increased oil consumption
- Blue smoke from the exhaust
- Valve noise or ticking sounds
Choosing the Right Valve Seats and Guides
For high-performance or heavy-duty applications, selecting high-quality alloy-based valve seats and guides ensures longevity and efficiency. Proper installation, lubrication, and periodic maintenance further enhance engine performance.
Conclusion
Valve seats and valve guides are fundamental to engine durability and performance. By understanding their functions, materials, and maintenance, automotive professionals and engine builders can make informed choices to ensure optimal engine operation.
For premium-quality valve seats and guides, Quintess International offers precision-engineered components designed to meet industry standards. Contact us today to find the right solutions for your engine needs!
